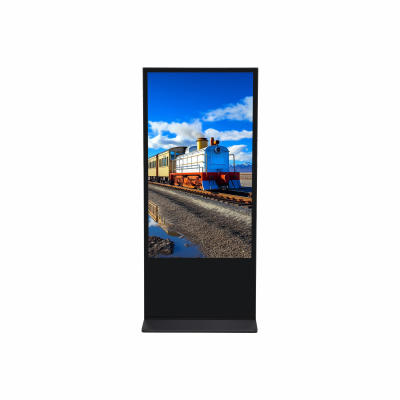

Dahua LDV65-SAI400L DIGITAL KIOSK

Dahua LDV65-SAI400L DIGITAL KIOSK

Dahua LDV65-SAI400L DIGITAL KIOSK

> Designed with an industrial-grade panel.

> Includes a mainstream quad-core CPU, Android system, and decodes up to 4K resolution.

> Plays and releases programs in multiple modes.

> With intelligent split screen, its page layout can be freely adjusted, making it suitable for a variety of scenes.

> Designed with B/S architecture, the device manages programs by time and location, and generates operation reports.

> Supports encrypting platform data transmission, multi-level permission review for program release and terminal password protection.

> The device offers unified platform management, and can be remotely controlled by the platform.

Category: Brand:

Description

LCD Panel

LCD Panel
Screen Size 65 inch
Backlight DLED
LCD Technology IPS/VA
Aspect Ratio 9:16
Brightness 320 cd/m² (typ.)
Display Colors 10 bit (8 bit + FRC), 1.07B colors
Resolution 2160 (H) × 3840 (V)
Viewing Angle 178° (H) / 178° (V)
Response Time 8 ms
Surface Treatment Haze 1%
Built-in System
Operating System Android 11.0
CPU 4 cores A55, 1.92 GHz
RAM 4 GB
ROM 32 GB
Video Decoding H.265 HEVC MP-10@L5.1 up to 2160p@60 fps;
H.264 AVC HP@L5.1 up to 2160p@30 fps;
VP9 Profile 2 up to 2160p@60 fps;
H.264 MVC up to 1080p@30 fps;
MPEG-4 ASP@L5 up to 1080p@30 fps;
WMV/VC-1 SP/MP/AP up to 1080p@30 fps;
Function
Audio Compression MPEG-3, WMA, WAV
Video Compression MPEG-4, H.264 AVC/MVC, H.265 HEVC
Video Format mp4, avi, mov, mkv, wmv
Device Ports
Network Port 1 × RJ–45 10/100/1,000 Mbps self-adaptive Ethernet port
Wi-Fi Optional (External Wi-Fi module)
Data Transmission Ports 1 × USB 2.0 (type A); 1 × USB 3.0 (type A)
1 × TF card slot, up to 128 GB
Video Input 1 × HDMI 2.1 (3840 × 2160@60 Hz)
Audio Port 1 × 3.5 mm jack output
IR Receiver Yes
Speaker
Built-in Speaker 2 × 5 W
General
Power Supply 100–240 VAC, 50/60 Hz
Power Consumption 150 W (typ.), 160 W (max)
Standby Power Consumption ≤0.5 W
Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–85% (RH), non-condensing
Storage Humidity 10%–90% (RH), non-condensing
Product Material Metal casing
Casing Color (Frame/Rear) Black
Product Dimensions 1,955.0 mm × 879.0 mm × 88.9 mm (76.97″ × 4.68″ × 3.50″) (without bracket)
2,000.0 mm × 882.0 mm × 471.5 mm (78.74″ × 34.72″ × 18.56″) (with bracket)
Frame Size 35.6 mm/36.3 mm /38.4 mm (1.4″/1.43″/1.51″) (T/L/R)
Packaging Dimensions 2,125 mm × 200 mm × 1,050 mm (83.7″ × 7.9″ × 41.3″) (L × W × H)
Net Weight 65 kg (143.30 lb)
Gross Weight 78 kg (171.96 lb)
Installation Vertical mount
Display Mode Portrait
Accessory Bracket, user’s manual, power cord, legal and regulatory information, energy label, remote control
Certification
Certifications CE EMC, CE LVD, CE ERP
Panel Dimensions 75 inch
Backlight DLED
LCD Technology IPS/VA
Aspect Ratio 9: 16
Brightness 320 cd/m² (typ.)
Contrast IPS 1200:1(typ.) / VA 4000:1(typ.)
Display Colors 10 bit (8 bit + FRC), 1.07B colors
Resolution 2160 (H) × 3840 (V)
Viewing Angle 178° (H); 178° (V)
Response Time 8 ms (typ.)
Surface Treatment Haze 25%
Built-in System
Operating System Android 11.0
CPU 4 cores A55, 1.92 GHZ
RAM 4 GB
ROM 32 GB
Video Decoding H.265 HEVC MP-10@L5.1 up to 2160p@60 fps

H.264 AVC HP@L5.1 up to 2160p@30 fps

VP9 Profile 2 up to 2160p@60 fps

H.264 MVC up to 1080p@60 fps

MPEG-4 ASP@L5 up to 1080p@60 fps (ISO-13818)

WMV/VC-1 SP/MP/AP up to 1080p@60 fps
Function
Audio Compression MPEG-3, WMA, WAV
Video Compression MPEG-4, H.264 AVC/MVC, H.265 HEVC
Video Format mp4, avi, mov, mkv, wmv
Device Ports
Network Port 1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet

port
Wi-Fi Optional (External Wi-Fi module)
Bluetooth NO
Data Transmission Ports 1 × USB 2.0 ports (type A)

1 × USB 3.0 ports (type A)

1 × TF card slot, up to 128 GB
Video Input 1 × HDMI 2.1 (4K @60Hz)
Video Output NO
Audio Port 1 × 3.5 mm jack output
IR Receiver Yes
Speaker
Built-in Speaker 2 × 5 W
General

General
Power Supply 100–240 VAC, 50/60 Hz
Power Consumption ≤ 200 W
Standby Power

Consumpton

 ≤ 0.5 W
Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operatng Humidity 10%–85% (RH), non-condensing
Storage Humidity 10%–90% (RH), non-condensing
Product Material Metal casing
Casing Color (Frame/Rear) Black
Product Dimensions 2028 mm × 1028 mm × 520 mm (79.84″ × 40.47″ ×

20.47″)
Packaging Dimensions 2204 mm × 234 mm ×1194 mm (86.77″ × 9.21″ ×

47.01”)
Net Weight 80 kg (176.37 lb)
Gross Weight 99 kg (218.26 lb)
Installation Vertical mount
Display Mode Portrait
Accessory Base, user’s manual, power cord, legal and regulatory

information, remote control
Certification
Certifications CE; ERP
