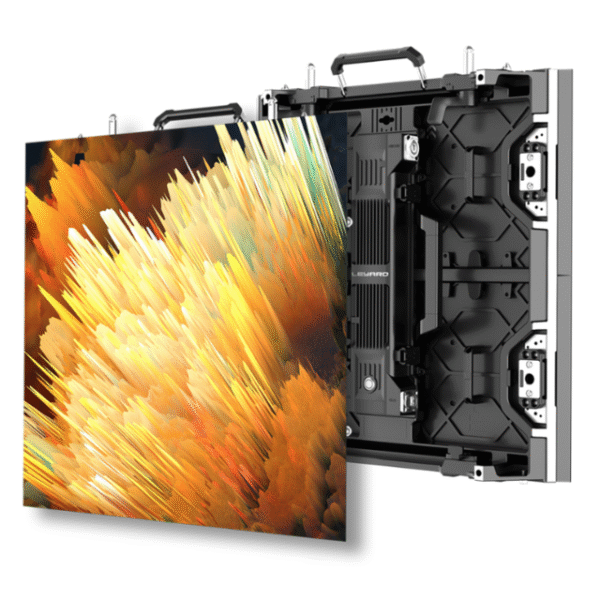

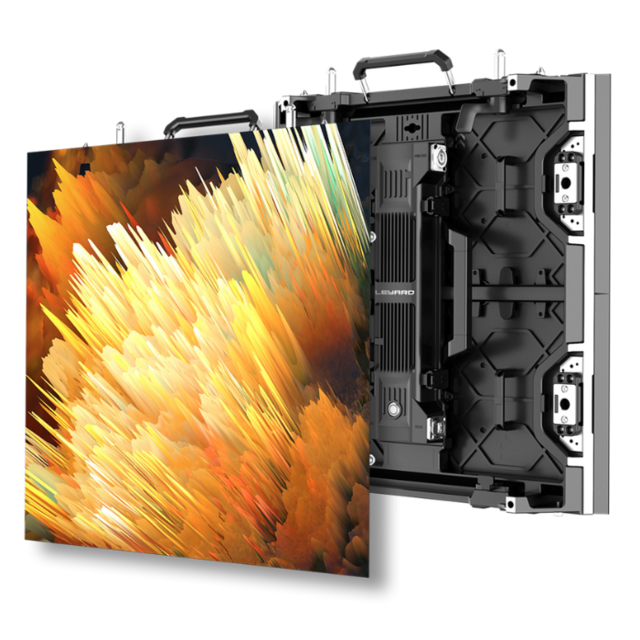

Leyard LN Series LED Video Wall for Events and Venues

Leyard LN Series LED Video Wall for Events and Venues

Portable indoor or outdoor event displays with convex or concave curves and edge protection

The Leyard® LN Series is a versatile, efficient and flexible rental LED display solution. Its user-friendly modular design and lightweight construction make it quick and easy to set up and tear down for exhibitions, concerts, conferences, sporting events and more. The LED cabinets can be adjusted from -10° to 10° to create convex or concave LED video walls that can be hung or stacked, making it a great option for any temporary indoor event or occasion.

For unique and eye-catching designs, the Leyard LN Series offers cabinets with 45-degree beveled cabinet designs for 90-degree right angle and cube designs (LN-R) as well as curved cabinet designs (LN-C) to efficiently create wave and circular designs for maximum audience impact.

  • 1.9, 2.6, 2.9, 3.9 & 4.8mm pixel pitches
  • Lightweight & portable design
  • Indoor & outdoor models available
  • Supports unique curved and right-angle applications
Category: Brand:

Description

Specifications

LN1.9 LN2.6 LN2.9 LN3.9 LN2.9S LN3.9S
Cabinet Resolution (WxH) 256×256 192×192 168×168 or 168×336 128×128 or 128×256 168×168 or 168×336 128×128 or 128×256
Cabinet Size (WxHxD) 500x500x79 mm 500x500x79 mm 500x500x79 mm or 500x1000x79 mm 500x500x79 mm or 500x1000x79 mm 500x500x79 mm or 500x1000x79 mm 500x500x79 mm or 500x1000x79 mm
Brightness, max. (cd/m²) 1000 nits 1000 nits 1000 nits 1000 nits 4000 nits 4000 nits
Pixel Pitch (mm) 1.953 mm 2.604 mm 2.976 mm 3.906 mm 2.976 mm 3.906 mm
Module Composition (WxH) 2×2 2×2 2×2 or 2×4 2×2 or 2×4 2×2 or 2×4 2×2 or 2×4
IP Level IP50 IP50 IP50 IP50 IP65 IP65
Frame Rate (Hz) 50&60 Hz 50&60 Hz 50&60 Hz 50&60 Hz 50&60 Hz 50&60 Hz
Contrast Ratio 5000:1 5000:1 5000:1 5000:1 5000:1 5000:1
Refresh Rate (Hz) 3840 Hz 7680 Hz 7680 Hz 7680 Hz 7680 Hz 7680 Hz
