Description
H Series Flagship
Video Splicing Processor

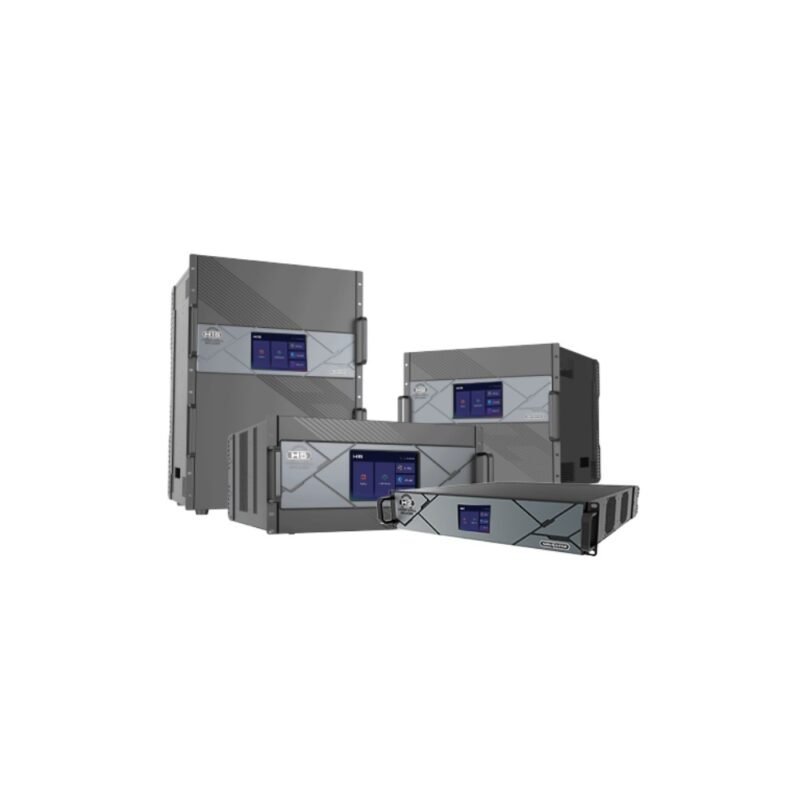

H Series is NovaStar’s flagship all-in-one video splicing processor, designed specifically for fine-pitch LED applications. It is the first All-in-One splicer and controller in the industry, which greatly simplifies system integration. With the leading image processing technology in the industry, H series can give you an astonishing visual effect, truly making it the perfect solution for fine-pitch LED applications.
All-in-One — Simple design, yet complex integration
While utilizing module mainframe connectivity, the H series highly integrates splice processing and display control to achieve true All-in-One, which simplifies system interconnection structure for customers. It will also reduce equipment failure rates, and improve equipment operation and maintenance to a whole new level.
Input
Output
| Model | H2 | H5 | H9 | H15 | H20 |
| Rack Unit | 2U | 5U | 9U | 15U | 20U |
| Max. Loading Capacity (H_20xRJ45 sending card) |
26 million pixels | 39 million pixels | 65 million pixels | 130 million pixels (H15) 208 million pixels (H15 Enhanced) |
260 million pixels |
| Max. Loading Capacity (H_4xfiber sending card) |
41.6 million pixels | 62.4 million pixels | 104 million pixels (H9) 208 million pixels (H9 Enhanced) |
208 million pixels (H15) 332.8 million pixels (H15 Enhanced) |
416 million pixels |
| Max.Output | Max. width: 2560 pixels, Max. Height: 2560 pixels (Single video connector) Max. width: 10752 pixels, Max. Height: 10752 pixels (Single Ethernet port) Max. width: 16384 pixels, Max. Height: 16384 pixels (Single OPT port) |
||||
| Max. Input Cards | 4 | 10 | 15 | 30 | 40 |
| Max. Output Cards | 2 | 3 | 5 (H9) 10 (H9 Enhanced) |
10 (H15) 16 (H15 Enhanced) |
20 |
| Irregular Mosaic | √ | √ | √ | √ | √ |
| Max. Layers | 16 layers per card | 16 layers per card (H15) 10 layers per card (H15 Enhanced) |
16 layers per card | ||
| Max. Presets | 2000 (Preset playlist playback supported) | ||||
| Permission Management | √ | √ | √ | √ | √ |
| 10bit and HDR | √ | √ | √ | √ | √ |
| Input and Output Monitoring (H_2xRJ45+1xHDMI1.3 preview card required) |
√ | √ | √ | √ | √ |
| Optional Power Supply | / | √ | √ | √ | √ |
| Central Control | TCP/IP and RS232 | TCP/IP and RS232 | TCP/IP and RS232 | TCP/IP and RS232 | TCP/IP and RS232 |
