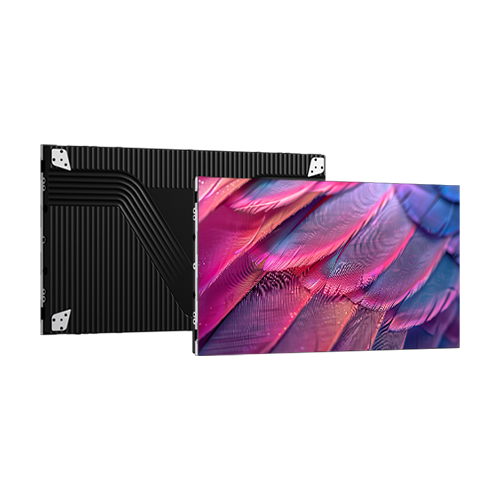

P1.667 SMD Indoor LED Display Panel

P1.667 SMD Indoor LED Display Panel

P1.667mm Indoor LED Display – High Precision Visuals for Indoor Excellence

⚪ Short Description

Deliver stunning clarity and seamless performance with the Makers24 P1.667mm Indoor LED Display, engineered for boardrooms, studios, control centers, and retail environments.
Its fine pixel pitch and high refresh rate deliver exceptional image depth, color accuracy, and smooth playback, making it the perfect choice for professional visual applications across the UAE.

🌟 Product Highlights

  • Fine 1.667 mm pixel pitch delivers vivid, detailed visuals even at short viewing distances.

  • Ultra-high refresh rate ≥ 3840 Hz ensures flicker-free display performance for broadcast and filming.

  • Wide 160° viewing angle provides consistent brightness and color accuracy across the screen.

  • Front service design for effortless installation and quick maintenance.

  • Lightweight die-cast aluminum cabinet with slim profile for flexible configurations.

  • Ideal for corporate presentations, digital studios, retail displays, and control rooms.

Category:

Description

General Specifications

Parameter Specification
Pixel Pitch 1.667 mm
LED Technology SMD1010 (3-in-1)
Panel Size (W × H × D) 640 × 480 × 60 mm (typical)
Panel Resolution 384 × 288 pixels
Pixel Density ~360,000 pixels/m²
Module Size (W × H) 320 × 160 mm
Module Resolution 192 × 96 pixels
Panel Weight 7–9 kg
Cabinet Material Die-cast Aluminum

Optical Performance

Parameter Specification
Brightness 800 – 1000 nits
Contrast Ratio 5000 : 1
Color Temperature Adjustable 3000K – 9300K
Viewing Angle (H/V) 160° / 160°
Refresh Rate ≥ 3840 Hz
Gray Scale 16 bit
Uniformity ≥ 97%

Electrical Specifications

Parameter Specification
Input Voltage AC 100–240V, 50/60Hz
Max Power Consumption ~550 W/m²
Average Power Consumption ~180 W/m²

Reliability & Environment

Parameter Specification
Operating Temperature -10°C ~ +45°C
Operating Humidity 10% – 90% RH (non-condensing)
LED Lifetime ≥ 100,000 hours
IP Rating (Front/Rear) IP40 / IP21 (Indoor use)
