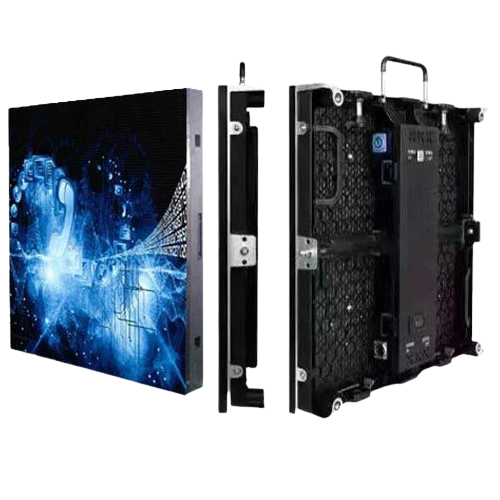

P1.8 Narrow Pixel Pitch LED Display

P1.8 Narrow Pixel Pitch LED Display

P1.8 Narrow Pixel Pitch LED Display

Overview

The P1.8 LED display offers ultra-clear resolution and vibrant brightness, making it ideal for applications where high visual quality is required at relatively close viewing distances. With flexible cabinet options, wide viewing angles, and high refresh rate, it delivers premium indoor performance.

Features & Highlights

  • High brightness for dynamic displays

  • Optimal balance between resolution & budget

  • Easy service with front/rear access

  • Reliable for long-term usage

Applications

  • Auditoriums

  • Large conference rooms

  • Retail showrooms

  • Control & monitoring rooms

Category:

Description

Key Specifications

Parameter Specification
Pixel Pitch 1.8 mm
Pixel Density 288,400 dots/m²
LED Type SMD 1515
Driver IC High-performance (MBI 5153 / ICN2053 compatible)
Cabinet Size 640 × 480 mm / 600 × 337.5 mm
Cabinet Resolution 344 × 258 pixels / 320 × 180 pixels
Cabinet Material Magnesium / Aluminum Die-cast
Brightness 800 – 1000 nits
Refresh Rate 3840 Hz
Viewing Angle 178° (H) / 160° (V)
Viewing Distance 1.8 m – 100 m
Protection Level IP57
Power Supply High-efficiency dual supply
Maintenance Front & Rear Access
Control System Compatible with major LED controllers
