| Product Model |
| Product Model |

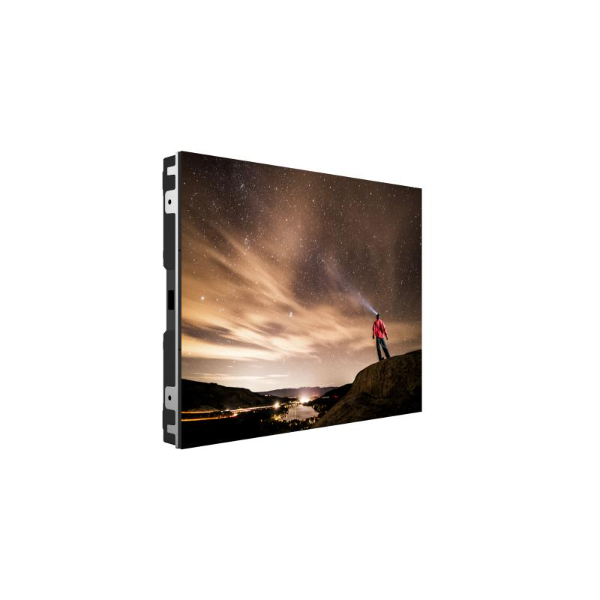

DS-D4020CS-1F |
| Product Type |
| Product Type |
Indoor small pitch full color LED |

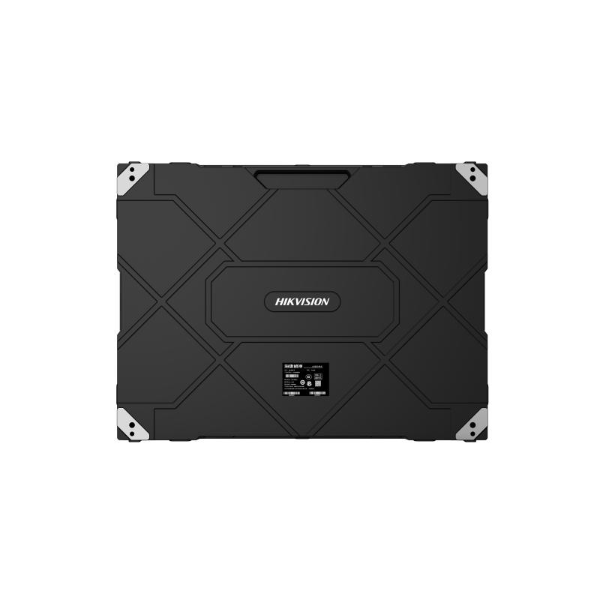

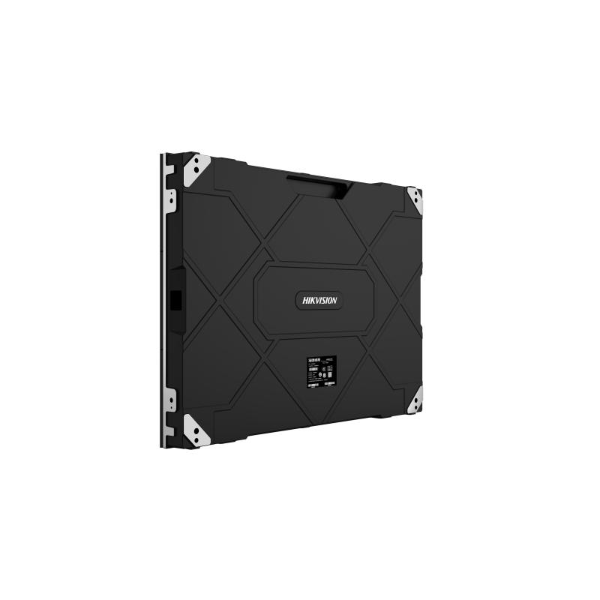

| Cabinet |
| Pixel Configuration |
SMD Triad LED |
| Pixel Pitch |
2.0 mm |
| Pixel Pitch Category |
P2.0 |
| Pixel Density |
250000 dots/m² |
| Modules Component |
2 × 3 |
| Dimensions (W × H × D) |
640 (W) mm × 480 (H) mm × 58.6 (D) mm (25.197” × 18.898” × 2.307”) |
| Resolution |
320 × 240 |
| Area |
0.3072 m² |
| Weight |
7.55 kg (16.64 lb) |
| Cabinet Material |
Die cast aluminum |
| Maintenance Method |
Complete front maintenance |
| Module |
| Dimensions |
320 mm × 160 mm |
| Module Resolution |
160 × 80 |
| Display |
| White Balance Brightness |
600 cd/m² |
| Color Temperature |
3000 K to 10000 K adjustable |
| Viewing Angle |
160° (H)/160° (V) |
| Contrast Ratio |
5000:1 |
| Color Uniformity |
≤ ± 0.003Cx, Cy |
| Brightness Uniformity |
≥ 97% |
| Processing Performance |
| Driving Method |
Constant current driving |
| Frame Frequency |
60 Hz |
| Refresh Rate |
3840 Hz |
| Grey Level |
Up to 16 bit |
| Power |
| Max. Consumption |
≤ 450 W/m² |
| Average Consumption |
≤ 150 W/m² |
| Input Voltage |
100 to 240 VAC ± 10% |
| Working Environment |
| Working Temperature |
-10 °C to 40 °C (14 °F to 104 °F) |
| Working Humidity |
10% RH to 60% RH (without condensation) |
| Storage Temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Storage Humidity |
10% RH to 85% RH (without condensation) |
| General |
| Package Dimensions (W × H × D) |
758 (W) mm × 606 (H) mm × 442 (D) mm (29.843” × 23.858” × 17.402”) |
