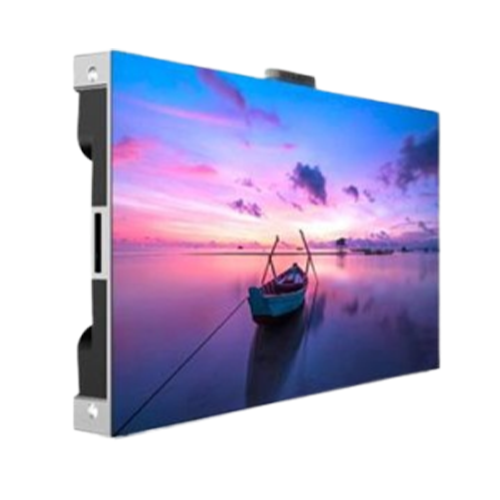

P2.5 Narrow Pixel Pitch LED Display

P2.5 Narrow Pixel Pitch LED Display

P2.5 Narrow Pixel Pitch LED Display

Overview

The P2.5 LED display provides excellent visual performance with balanced resolution and brightness, making it ideal for a wide range of indoor applications. With a high refresh rate and versatile maintenance options, it ensures reliable operation and easy servicing.

Features & Highlights

  • High refresh rate (3840 Hz) for flicker-free performance

  • Wide viewing angles for immersive visuals

  • Strong cabinet design with magnesium/aluminum die-cast material

  • Flexible maintenance options (front & rear)

  • Reliable performance with energy-efficient power supply

Applications

  • Indoor events & exhibitions

  • Shopping malls & retail displays

  • Corporate meeting rooms

  • Control rooms and command centers

  • Airports & transport hubs

Category:

Description

Key Specifications

Parameter Specification
Pixel Pitch 2.5 mm
Pixel Density 160,000 dots/m²
LED Type SMD 1515
Driver IC High-performance (MBI 5153 / ICN2053 compatible)
Module Size — (configured per cabinet)
Cabinet Size 640 × 480 mm
Cabinet Resolution 256 × 192 pixels
Cabinet Material Magnesium / Aluminum Die-cast
Brightness 800 – 1000 nits
Refresh Rate 3840 Hz
Viewing Angle 178° (H) / 160° (V)
Viewing Distance 2.5 m – 100 m
Protection Level IP57
Power Supply High-efficiency dual supply
Maintenance Front & Rear Access
Control System Compatible with major LED controllers
