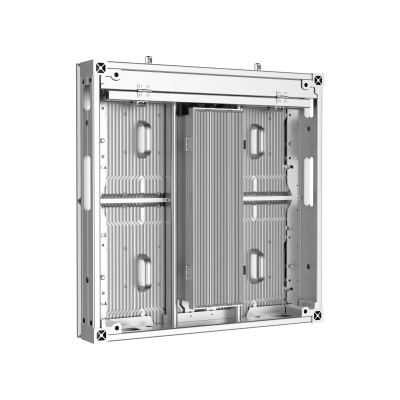

P2.97 Outdoor LED Screen

P2.97 Outdoor LED Screen

P2.97 Outdoor LED Screen

General Outdoor Fixed LED

> Super thin and light design: 77mm and 36kg/㎡.

> Support front&rear installation and maintenance.

> Support 90° right angle splicing.

> Aluminum module chassis and panel frame accelerates heat dissipation.

> High protection grade, IP68 on front and IP66 on rear.

> Dot by dot calibration ensures color richness and brightness uniformity.

Categories: , Brand:

Description

Model
Parameters
Pixel Pitch 2.97mm
Pixel Configuration 1R1G1B
LED Type SMD1515
Brightness (Max) 4500 nit
Color Temperature 3500K-10000K（adjustable)
Viewing Angle H160° / V90°
Pixel Density 112,896 dots/m²
Module Size 250mm×250mm
Module Resolution 84×84 dots
Cabinet Size W500mm×H500mm×D77mm
Cabinet Resolution (W×H) 168×168 dots
Cabinet Weight 9.0 kg ± 0.5
Cabinet Material Aluminum Alloy
Technical Specification
Model
Parameters
Pixel Pitch 2.97mm
Pixel Configuration 1R1G1B
LED Type SMD1515
Brightness (Max) 4500 nit
Color Temperature 3500K-10000K（adjustable)
Viewing Angle H160° / V90°
Pixel Density 112,896 dots/m²
Module Size 250mm×250mm
Module Resolution 84×84 dots
Cabinet Size W500mm×H500mm×D77mm
Cabinet Resolution (W×H) 168×168 dots
Cabinet Weight 9.0 kg ± 0.5
Cabinet Material Aluminum Alloy
Operating Temperature/Humidity -40℃~+60℃/10~80%RH
Storage Temperature/Humidity -40℃~+60℃/10~80%RH
IP Rating Front IP68/Rear IP66
Cabinet Aspect Ratio 1:1
Gray Scale (Max） 14 bits
Contrast Ratio 6000:1
Refresh Rate（Max） 3840Hz
Input Voltage AC 110~220V (+/-10%)
Input Power (Max) 680 W/m2
Input Power (Avg) 200 W/m2
Installation Mode Wall Mounted/Floor Mounted
Maintenance Mode Front&Rear Maintenance
Signal Transmission Distance CAT5 Cable ( L≤100m ), multi-mode fiber ( L≤300m ), single mode fiber (L≤10km)
Operating Temperature/Humidity -40℃~+60℃/10~80%RH
Storage Temperature/Humidity -40℃~+60℃/10~80%RH
IP Rating Front IP68/Rear IP66
Cabinet Aspect Ratio 1:1
Gray Scale (Max） 14 bits
Contrast Ratio 6000:1
Refresh Rate（Max） 3840Hz
Input Voltage AC 110~220V (+/-10%)
Input Power (Max) 680 W/m2
Input Power (Avg) 200 W/m2
Installation Mode Wall Mounted/Floor Mounted
Maintenance Mode Front&Rear Maintenance
Signal Transmission Distance CAT5 Cable ( L≤100m ), multi-mode fiber ( L≤300m ), single mode fiber (L≤10km)
