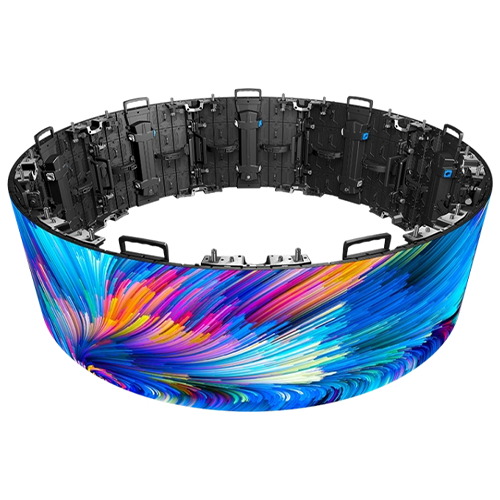

P6.6 Curved / Cylindrical LED Display

P6.6 Curved / Cylindrical LED Display

P6.6 Curved / Cylindrical LED Display

Overview

The P6.6 curved and cylindrical LED display is designed for mid-range viewing applications, offering high brightness and seamless visuals. With durable steel cabinets and weatherproof protection, it is suitable for both outdoor and indoor installations requiring immersive curved or cylindrical screen designs.

Key Features

  • Pixel pitch of 6.6 mm for mid-range viewing

  • High brightness of 6,200 nits ensures visibility in sunlight

  • IP65-rated protection for outdoor durability

  • Flexible cabinet sizes for installation versatility

  • Smooth 16-bit grayscale for vivid image reproduction

  • Wide viewing angles for consistent audience experience

Category:

Description

Technical Specifications

Specification Value
Pixel Pitch 6.6 mm
Pixel Density 22,500 dots/m²
LED Type SMD 3535 / 2727
Driver IC High-performance constant current driver
Refresh Rate 1920 – 3840 Hz
Brightness 6,200 nits
Grayscale 16-bit
Module Size 320 × 320 mm
Module Resolution 48 × 48
Cabinet Size 960×960 / 1280×960 / 1024×1024 mm
Cabinet Material Steel
Protection Level IP65
Viewing Distance 6.6 m – 100 m
Viewing Angle 170° H / 120° V
Power Supply Industrial-grade, energy-efficient
Control System Standard LED display control system
