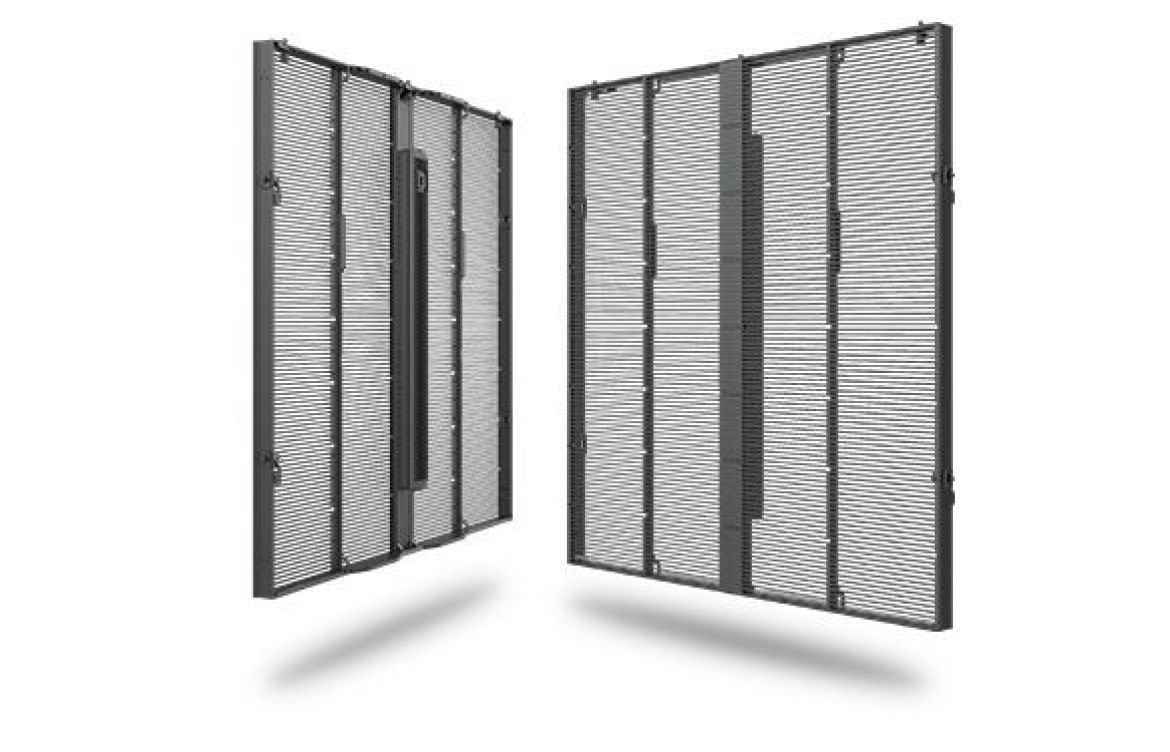

Transparent LED Display – Large Panel Design (5.6mm Pixel Pitch)

Transparent LED Display – Large Panel Design (5.6mm Pixel Pitch)

Transparent LED Display – Large Panel Design (5.6mm Pixel Pitch)

Transparent LED displays in large panel designs offer high visibility for content while maintaining see-through transparency, making them ideal for storefronts, exhibitions, and architectural applications.

Large-frame indoor transparent LED panels feature a transparency range of 35% to 62%, delivering exceptional performance in indoor settings with high brightness and wide viewing angles. The compact LED and PCB design further enhance transparency for a more seamless visual experience.

Category:

Description

Application Fields

  • Touring Productions

  • Live Concerts

  • Special Events

Pixel Pitch 5.6mm
LED Configuration SMD 1515 Black
Max Brightness Calibrated 2000nits
Panel Dimension 1000mm x 1000mm x 67mm
39.4” x 39.4” x 2.6”
Panel Resolution (H x V) 176 x 176
Weight Per Panel 10.9kg | 24.03lbs
Power Consumption Max/Average 420W / 210W
BTU Max/Average 1430 / 655
Transparency 35%
Serviceability Front
Curving (Concave & Convex) Concave 10° ~ Convex 10°
Viewing Angle Vertical 140°
Viewing Angle Horizontal 160°
Refresh Rate 3840Hz
Gray Scale 14bit
Scan Ratio 1/11
Operational Temp/Humidity -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH
Storage Temp/Humidity -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH
IP Rating IP40
Certifications CE, ETL, FCC, SAA
Max. Hanging 15 panels
Max. Stacking 6 panels
